1962 Triumph TR4 TR4 (1961 - 1965) Cabriolet

Tous nos véhicules sont rigoureusement contrôlés avant leur mise en vente : plus de 70 points de contrôle sont vérifiés (mécanique, châssis, carrosserie, intérieur et accessoires) + essai routier complet réalisé par notre chef d’atelier.

Chaque véhicule bénéficie également d’un contrôle des compressions moteur et/ ou d’une vérification de la pression d’huile à froid (selon les possibilités techniques).

Nos véhicules sont préparés dans notre atelier spécialisé en automobiles de collection, sportives et de prestige.

Ref: 103500

Date of first registration: 01/ 01/ 1962

Km (not guaranteed): 24, 891

Drive: left-hand drive

Registration: Collection

Seats: 3

Cylinders: 4 inline

Displacement: 2138 cc

Fuel: SP98 + additive

DIN horsepower: 103

Tax horsepower: 13

Gearbox: Manual 4-speed

Body colour: British Racing Green

Interior colour: Tan

Tires: Front wear 30% + Rear 30%

* 12-month warranty included

* Delivery possible

* On-the-road charges (optional): €690 including VAT (new battery, engine service (oil change + filter), 1/ 4 tank of fuel, bodywork wash + polish, interior cleaning and vacuuming).

* 'Carte grise' and 'Carte grise collection' service (FFVE file included) optional

TRIUMPH TR4 (1961 - 1965)

40, 200 produced

40, 058 km / 24, 891 miles

Registration: Collection

Registration: 3 seats

Recent restoration:

- bodywork

- upholstery

Electrical loom refurbishment at the front in 2018 (invoice €435)

Engine restoration in 2017 (invoice €6, 163):

- replacement of 4 sleeves

- replacement of 4 pistons

- replacement of connecting rod bearings

- replacement of inlet valves

- replacement of exhaust valves

- valve-seat re-grinding

- replacement of valve stem seals

- crankshaft balancing + rotating assembly

- block surfacing

- head resurfacing and pressure testing

- replacement of camshaft journal bushings

Cooling radiator restored in 2016

Double SU carburettors

12V dynamo

Chromed valve cover

Lead-free 98 catalytic converter

Priming pump

Tan mohair soft-top

Black synthetic leather tonneau cover (to be fitted)

Recent chromed bumpers and overriders

4 15" wire wheels (Gun Grey paint recently applied)

4 recent chromed knock-off hubs

4 WideTrack radial tyres with less than 30% wear both front and rear

Tan synthetic leather interior with matching piping

Aviation-style seat belts

Tan synthetic leather door cards

Original White steel dashboard with matching Black vinyl dash top

JAEGER instruments

LUCAS volt/ ammeter

Moto-Lita wooden 3-spoke steering wheel

TRIUMPH wooden gearknob

Black carpeting

Spare wheel

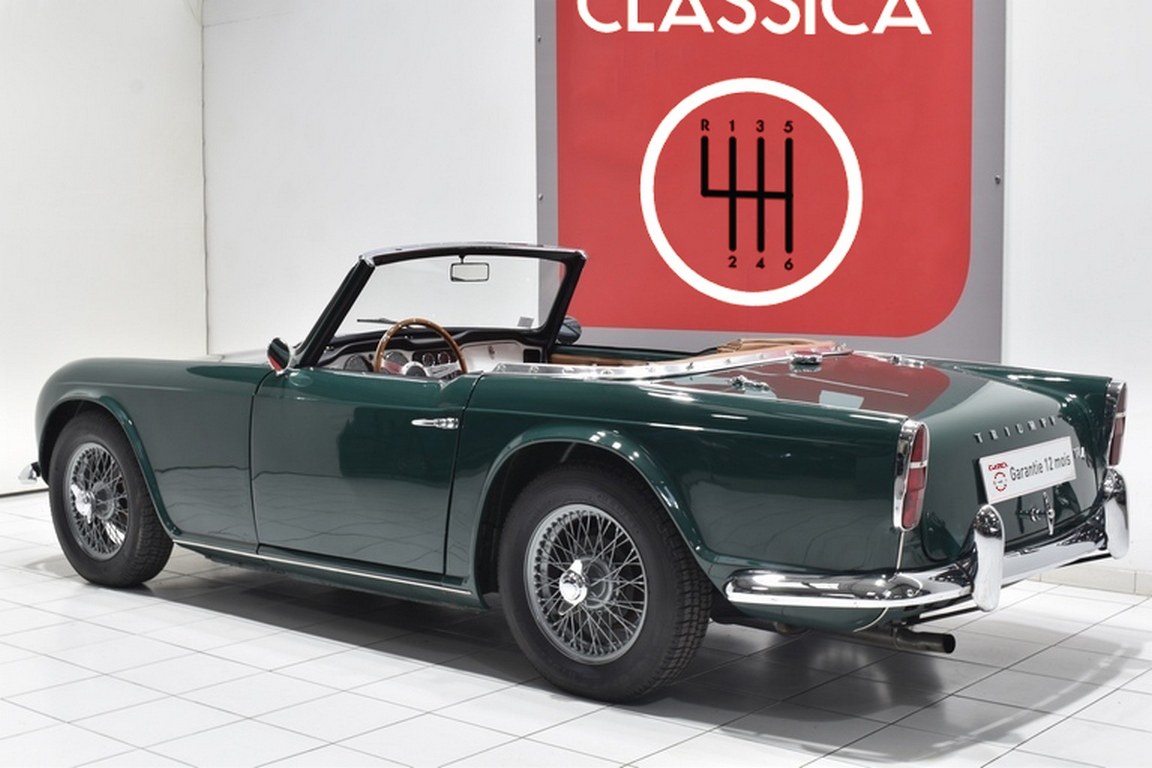

Exterior / Body:

The model shown here is a January 1962 TR4 in its original 'British Racing Green' colour. The body has been recently restored and received a full new paint finish. It presents in excellent condition with a uniform shade and superb gloss.

After a professional polish performed by our workshop using an orbital machine, we noted a small dent and a few minor paint defects under the bonnet and boot lid paint, plus a small paint chip repaired on the driver’s door edge.

The bumpers and chromed overriders were replaced during the body restoration. They are in excellent condition, though their alignment could be improved.

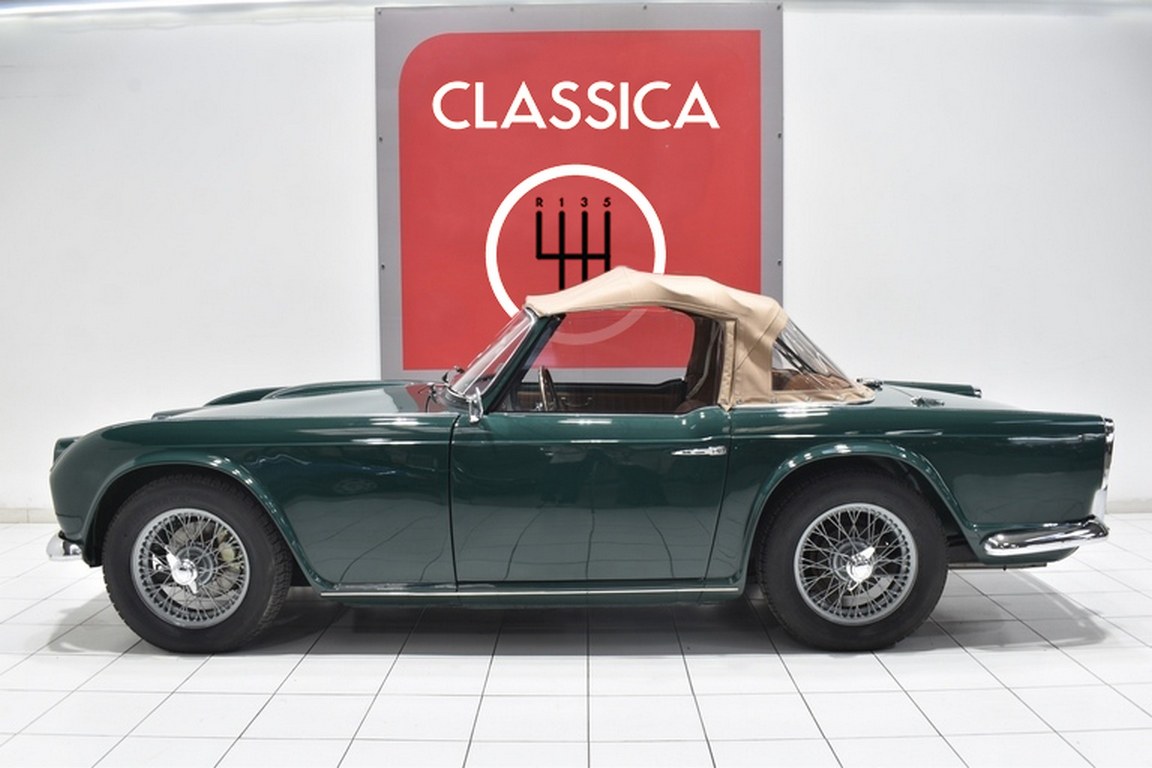

The tan mohair soft-top is in excellent condition, though it has a few minor marks at the centre. Fitting is straightforward, though alignment with the side windows remains slightly variable.

Rear quarter panels in PVC are completely translucent and show no cracks or breaks.

This example features a Black faux leather tonneau cover (to be fitted).

The 4 15" wire wheels are in excellent condition. They were painted Gun Grey during the body restoration. Their chromed knock-offs are in perfect condition.

The 4 WideTrack radial tyres show less than 30% wear both front and rear.

The spare wheel is present in its original location under the boot.

Among the notable exterior options on this example are the Black faux leather tonneau cover.

Interior:

The interior was restored a few years ago to factory specification and now presents in excellent condition.

Tan synthetic leather upholstery shows no patina or wear/ decoloration.

Matching door cards are in excellent condition; only the map pockets show a slight colour difference.

The original White dashboard and its Black vinyl top are also in excellent condition. There are small cracks on the centre console.

All JAEGER instruments and the LUCAS ammeter are fully functional.

The 3-spoke wooden MOTOLITA steering wheel is in perfect condition.

The wooden Triumph gear knob shows minor signs of use.

Carpet has been replaced during restoration and shows no wear or discoloration.

This example is also equipped with aviation-type front seat belts.

Among the equipment and interior options of interest on this car are aviation-type front belts, the 3-spoke MOTOLITA wooden steering wheel, and the Triumph wooden gear knob.

Chassis:

On lifting, the chassis and body are confirmed to be solid with no visible structural corrosion.

Fundamentals: sills, wheelarches, inner sills, ladder-frame chassis and longitudinals are in very good condition.

A trace of an old repair is noted on the front left longitudine.

As a rule we cannot guarantee perfect alignment beyond what is visually acceptable and road-test validated.

During the dynamic test, no abnormal rattles were found from the body or suspension components (ties, bushings, etc.).

Braking is aligned and highly effective.

Front discs and pads show under 20% wear.

Rear drums are fully functional and show no seepage.

The roadworthiness inspection performed by our workshop before delivery will confirm everything is functioning correctly.

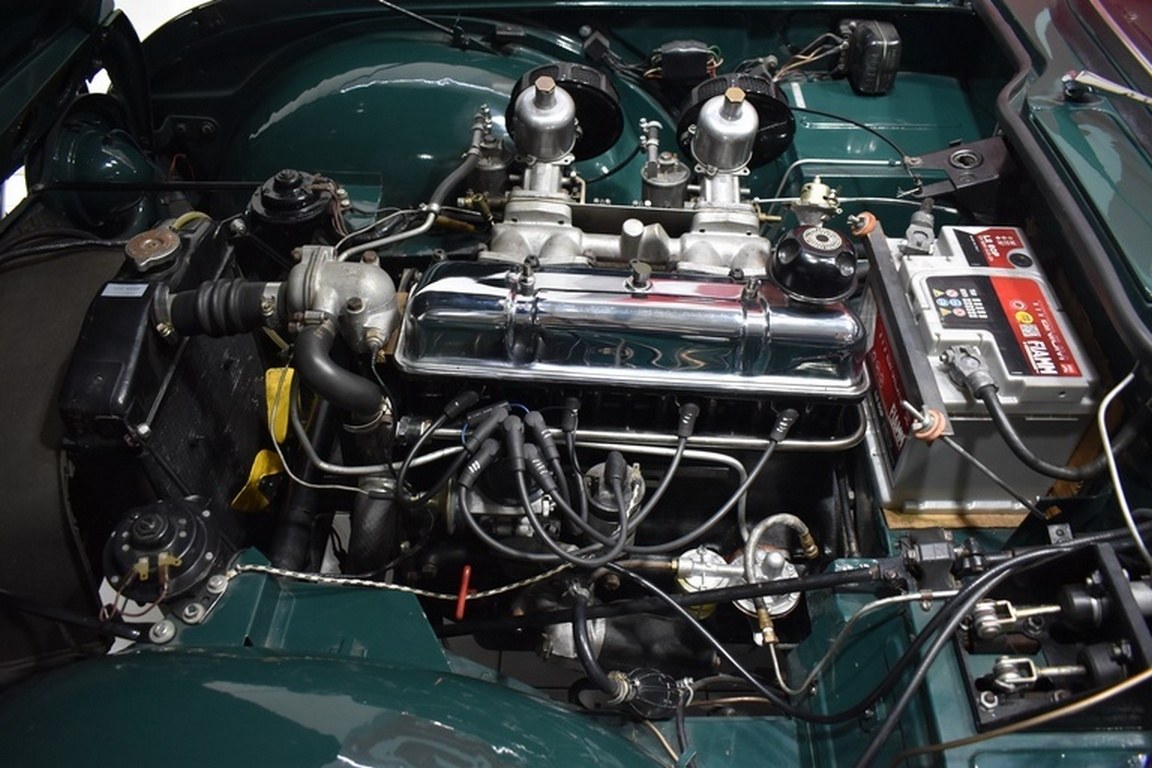

Engine / Transmission:

The mechanicals were removed and rebuilt in 2017 by our specialist (invoice €6, 163).

The block and cylinder head were skimmed, and the 4 sleeves and 4 pistons were replaced, along with the connecting rod bearings, inlet and exhaust valves, camshaft bearings, head and bottom-end gaskets, valve seats machined and all moving parts balanced.

Compression tests and road test by our workshop confirm a healthy engine.

The 4-cylinder starts immediately with no smoke or unusual noises and idle is stable, as shown in the 360° video with the engine running (available at the start of the slideshow).

Cold oil pressure measured by our workshop is 70 PSI at 1000 rpm.

On the road and when warmed up, the engine revs freely without hiccups or overheating.

This example is also equipped with a chromed valve cover, a lead-free 98 catalytic converter and an priming pump.

The cooling radiator was refurbished in 2016.

In 2018 the front wiring loom was restored, the clutch hydraulic circuit bled and the fuel pump seals replaced (invoice €435).

All four gears in the manual gearbox go up and down smoothly with no SYNCHRO issues.

The clutch grip is good.

As is common with older engines, some oil tightness between engine and gearbox remains.

Other similar vehicles are also available. 50 photos + running engine video on CLASSIC-A
