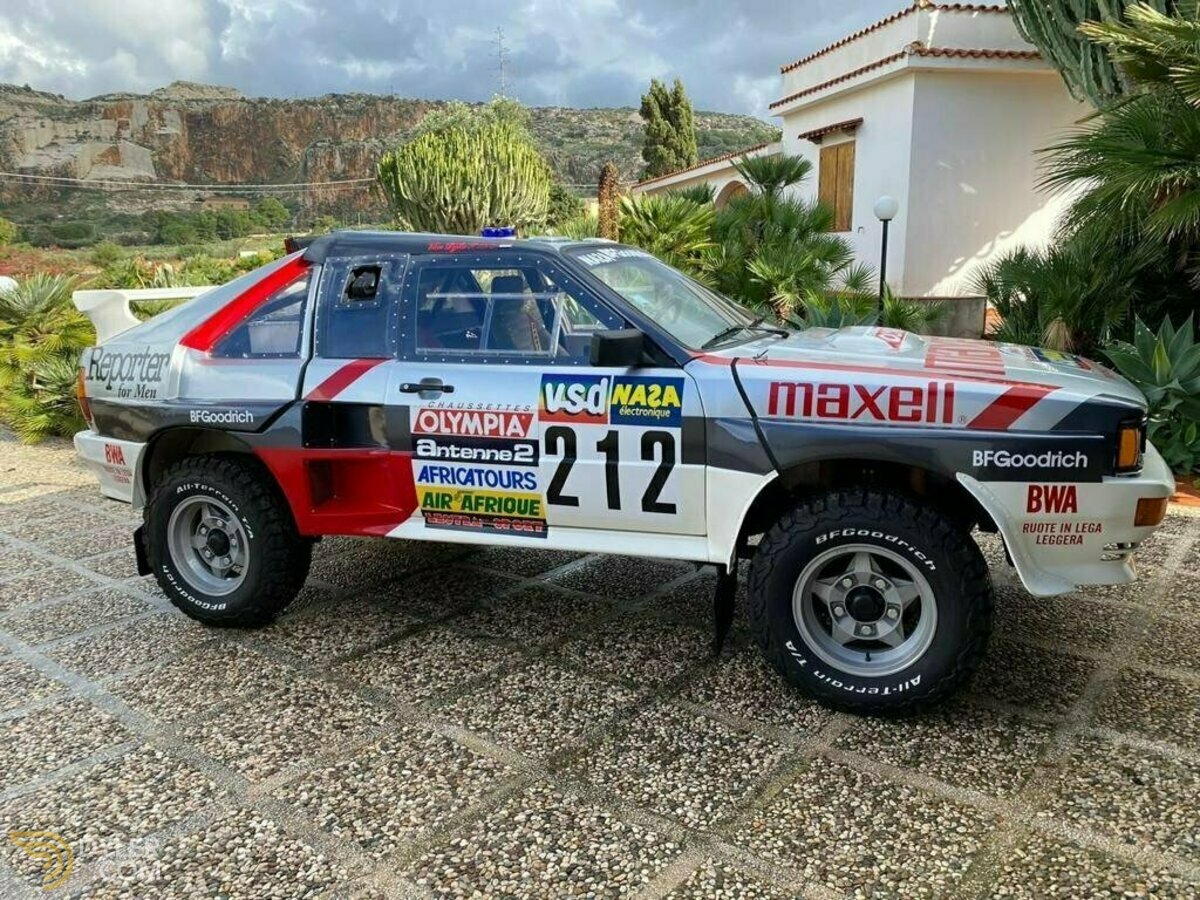

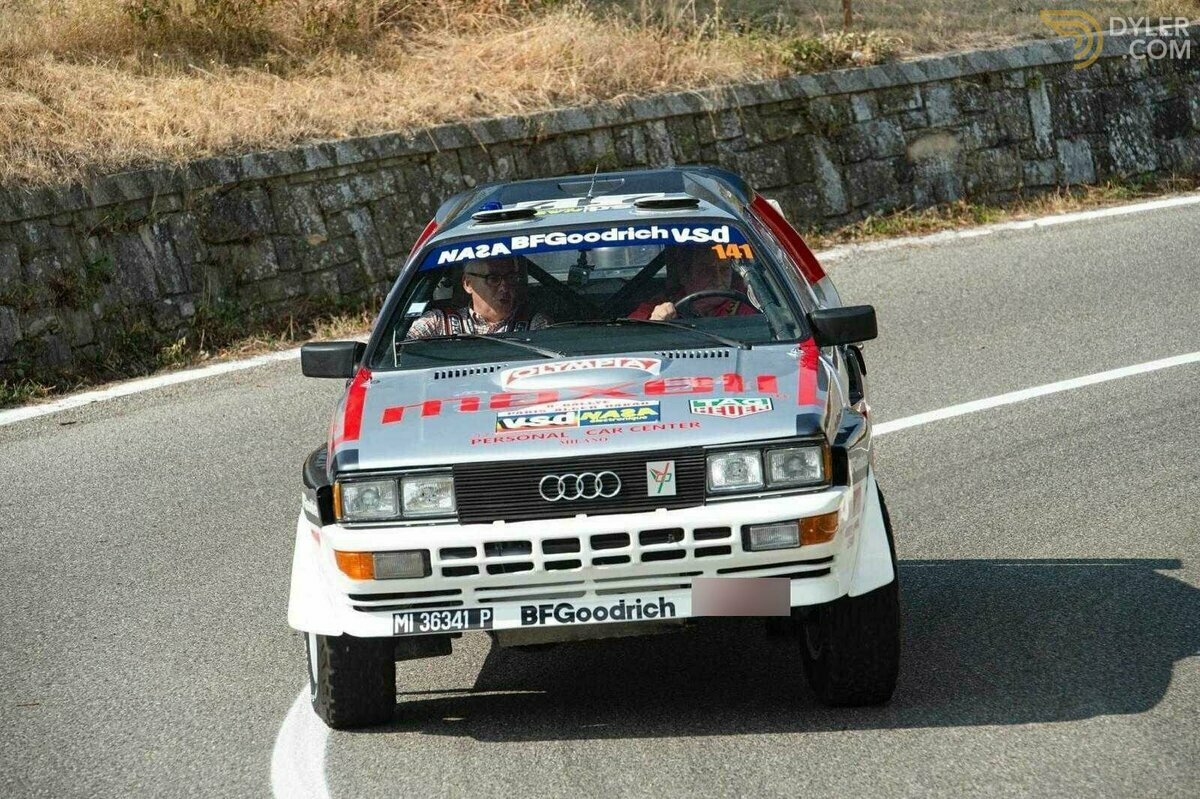

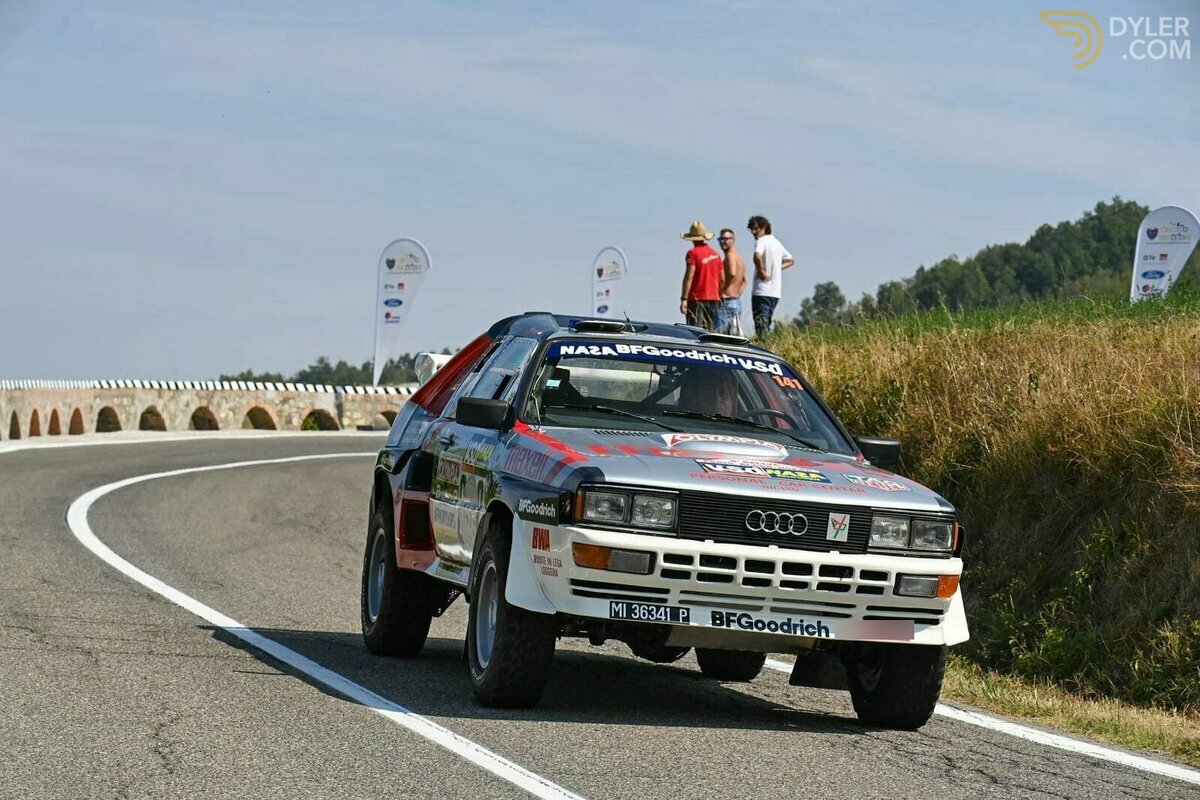

1986 Audi Quattro

woow present Audi Quattro Proto – F. De Paoli EX Paris Dakar

totally original rare.

Technical features:

Engine: Petrol, front 8 cylinder V of 3528cc. Stroke bore: 88.9x71.1 mm. Compression: 9.35: 1. Max power 230CV at 5400 rpm. Maximum torque 84kgm at 2500 rpm

Power supply: Valve rods operated by hydraulic tappets. Electronic injection Bosch brand Distribution: 2 valves per 65-degree V cylinder. Water cooling. 400 litre petrol tank.

Transmission: Permanent all-wheel drive, torque sharing with Ferguson type viscous centre differential; self-locking front differential. 5-speed Rover gearbox, dry single-plate clutch. Power-assisted rack and pinion steering.

Suspension: Axle position by means of spoke arms with Panhard bar (rear). Control via double long stroke hydraulic telescopic shock absorbers. Both front and rear suspensions incorporate a pneumatic unit with different ground clearance options in place of coil springs (De Paoli project).

Brakes: Rover front discs (30.0mm) with callipers; rear discs (28.9mm) Rover with callipers and brake booster. Double front circuit. Direct hand brake on transmission. Wheels: BWA 7K x 15H x 8.5 alloy wheels. BF Goodrich tires. T / A K02, 235 / 70-15

Dimensions: Length: 4500mm. Width: 1780mm. Height: 1680mm. Track: 1780mm. Wheelbase 2550mm Maximum Speed 200 Km / h. Autonomy, 1000km

Palmares:

1986 1987

Rally de l’Atlas Paris – Dakar Rally de l’Atlas

Paris - Dakar
